QDD Actuator Buyer Resources

Practical resource pages for buyers who need CAD files, datasheets, communication support, compliance documents, and export-ready RFQ context before selecting QDD actuator samples.

These pages intentionally separate requestable engineering assets from unsupported claims. Use them to prepare a tighter first inquiry and reduce cross-time-zone review loops.

Engineering resource visuals

Actuator documentation starts with the real joint context

CAD, protocol, and compliance requests become useful when they are tied to torque-speed duty, mechanical envelope, electronics scope, destination market, and revision status.

Integrated 36 Nm QDD actuator module for high-torque robot joints
Integrated 36 Nm QDD actuator module for high-torque robot joints

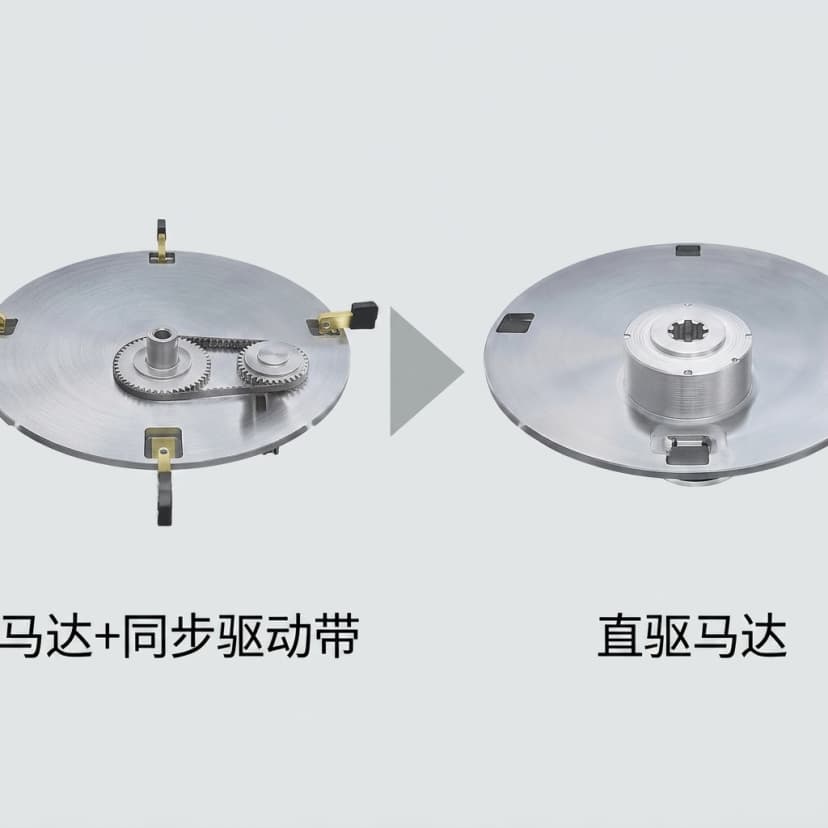

Direct-drive motor reference for QDD architecture and ratio comparison
Direct-drive motor reference for QDD architecture and ratio comparison

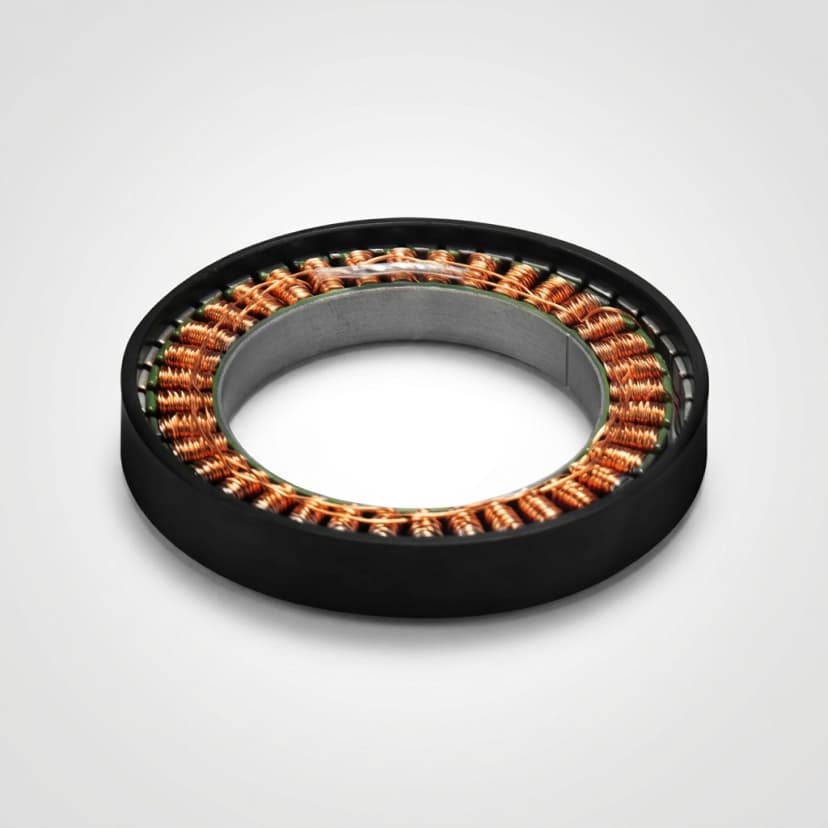

Outer-rotor brushless torque motor for backdrivable robot joint review
Outer-rotor brushless torque motor for backdrivable robot joint review

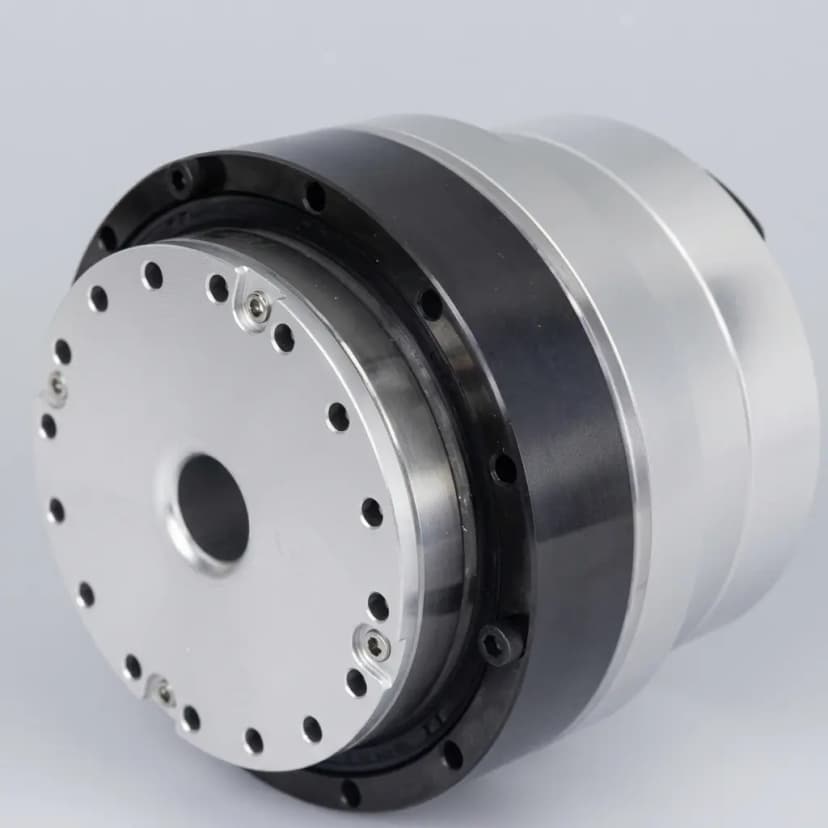

Harmonic-geared robot joint reference used for QDD architecture comparison
Harmonic-geared robot joint reference used for QDD architecture comparison

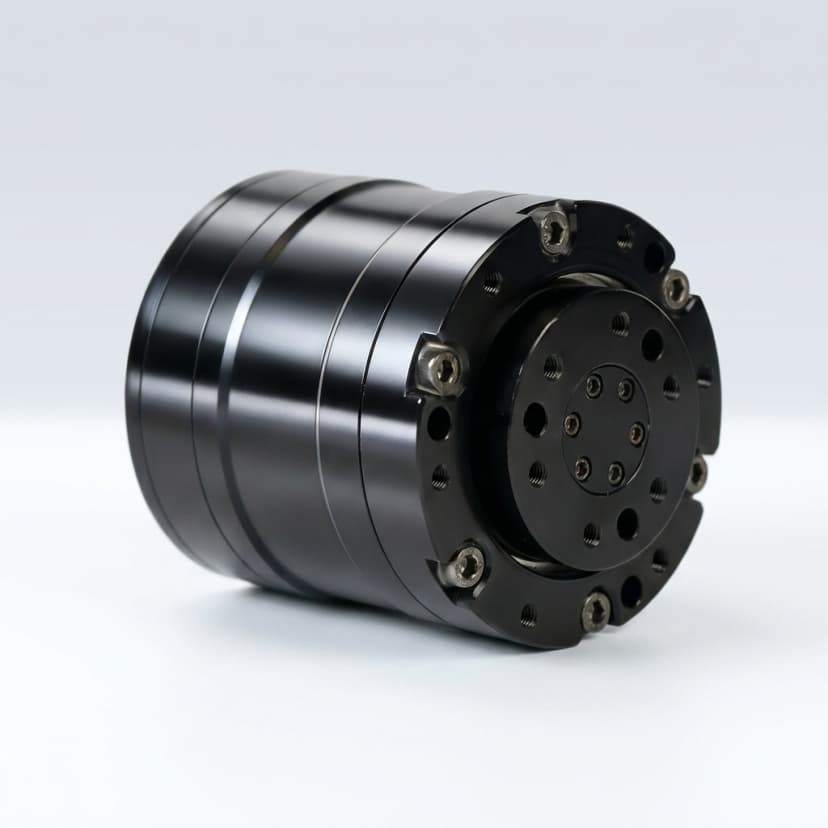

High-torque integrated servo module for QDD actuator sizing review
High-torque integrated servo module for QDD actuator sizing review

qdd actuator datasheet cad model

QDD Actuator CAD and Datasheet Library

A buyer guide for requesting QDD actuator datasheets, 2D drawings, STEP/IGES models, torque-speed notes, and integration documents without creating revision confusion.

  • Clarifies which documents can be requested before quotation and which require a defined actuator class
  • Explains how STEP, IGES, 2D drawings, and datasheets should be used during joint packaging review
  • Reduces back-and-forth by listing the exact buyer inputs needed for useful engineering documents
View resource

can bus qdd actuator ethercat robot actuator integration

QDD Actuator Developer Support

Integration guidance for QDD actuator buyers reviewing controller modes, CAN or EtherCAT communication, encoder feedback, Python/C++/ROS workflows, and sample bring-up risk.

  • Frames QDD actuator integration around controller, firmware, bus, encoder, and safety assumptions
  • Explains what to ask before depending on MIT-style control, current mode, position mode, or torque-control workflows
  • Gives a practical bring-up checklist for Python, C++, ROS, CAN, and EtherCAT-oriented teams
View resource

qdd actuator compliance export documents

Compliance and Export Documents for QDD Actuators

A practical guide to compliance, shipment, and document questions for global QDD actuator buyers reviewing CE, FCC, RoHS, REACH, UL, test reports, quality records, and export paperwork.

  • Separates destination-market compliance questions from unsupported badge-style claims
  • Explains how CE, FCC, RoHS, REACH, UL, test reports, and QC records should be requested
  • Helps buyers prepare compliance document lists before sample or pilot orders
View resource

What to Prepare Before Asking for Files

Resource NeedBest First InputWhy It Matters
QDD Actuator CAD and Datasheet LibraryRobot type, joint location, and target actuator familyPrevents buyers from designing around an outdated drawing or uncontrolled CAD file.
QDD Actuator Developer SupportActuator family or torque class under reviewLegged robots and force-control systems can become unstable when command and feedback timing are poorly understood.
Compliance and Export Documents for QDD ActuatorsDestination market and intended product useCompliance documents can become misleading if the actuator configuration changes.
